Description
DSC2 + ECCO-YD-24V BASIC STAND ALONE ECONOMY CYCLE CONTROL

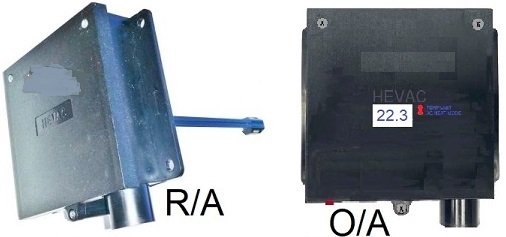

Using the DSC2 return air duct sensor/controller interlocked with an ECCO-YD-24v O/A wall mount inhibit thermostat can be used as a stand alone independent control system for economy cycle only control. Typically required because the A/C unit only comes with a propriety room temperature /time switch control station (so called pendent) that cannot also control an economy cycle operation. Adding these two field mount devices adds this economy cycle control albeit independent from the room thermostat. Fresh air mode of economy cycle operation is triggered if the return air temperature is above the DSC2 R/A sensors setpoint (ie 23c) and the outside air temperature is measured to be within a low & high adjustable temperature limits, which are set in the O/A ECCO thermostat.
1 x DSC2 R/A DUCT MOUNT SENSOR / CONTROLLER.
1 x ECCO-YD-24V O/A limit thermostat c/w digital display of the O/A temperature
We’d greatly appreciate if you also purchased the economy cycle damper motors from us as part of the controls package, we are authorised distributers for Siemens controls and can offer the following choices of damper motors to suit damper size etc at very competitive costs.
3 x GDB161.1E 5NM (rated at 0.8M SQ M) Modulating damper motors ADD $463.65 + gst (for 3 motors)
or 3 X GLB161.1E 10NM (rated at 1.5M SQ M) Modulating damper motors ADD $589 + gst (for 3 motors)
or 3 x GPC161.1A 4NM (rated at 0.6 SQ M) Modulating damper motor c/w spring return ADD $724.35 + gst (if fire mode open or close position required on power loss)
or 3 x GMA161.1E 7NM (rated at 1.5 SQ M) Modulating damper motor c/w spring return ADD $826.65 + gst (if fire mode open or close position required on power loss)
RING OUR OFFICE ON 03 95627888 TO MANUALLY PLACE ORDER FOR CHANGES TO DEFAULT BASIC OFFERING.
