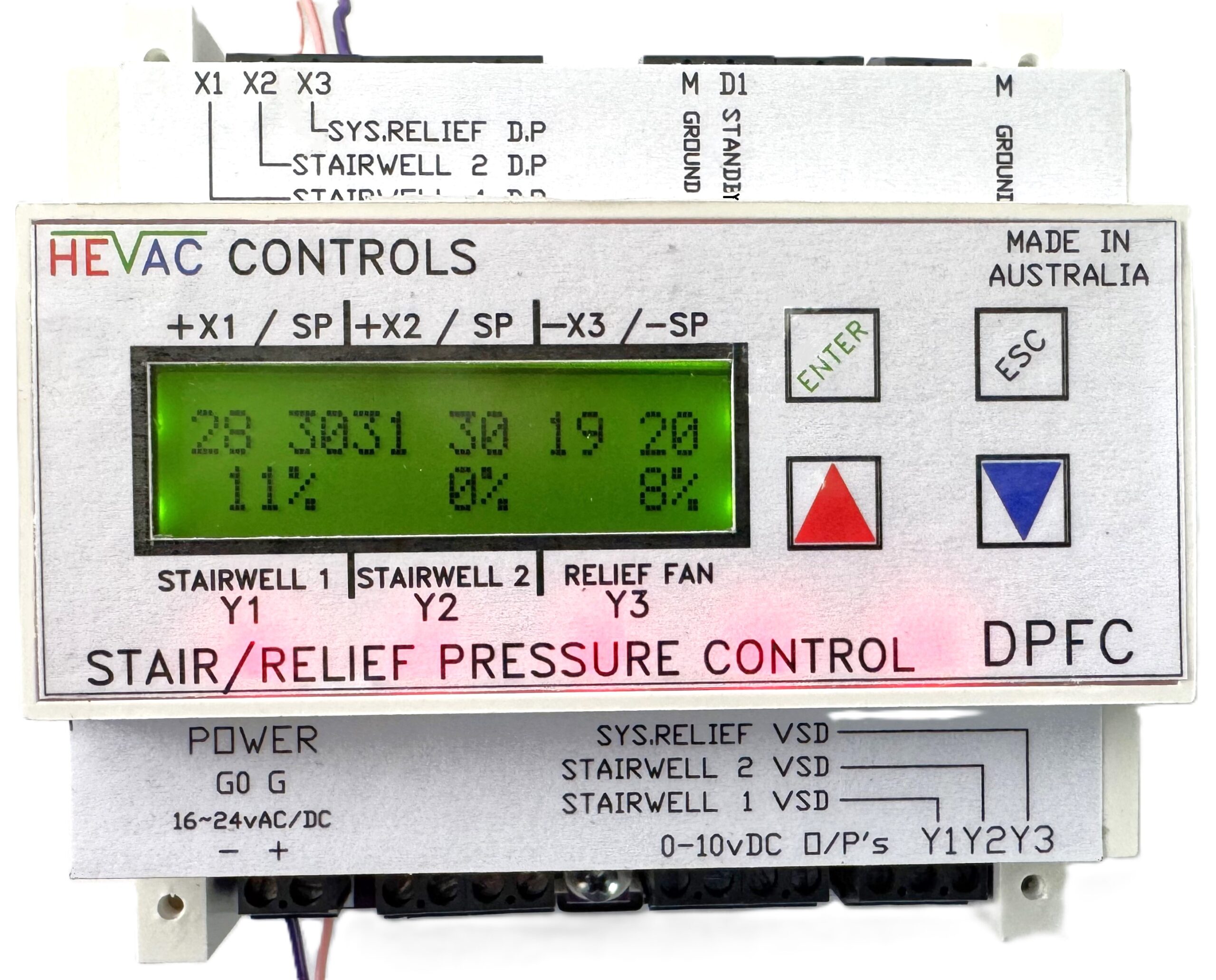

DPFC FIRE MODE TRIPLE LOOP, DUAL STAIRWELL & RELIEF FAN PRESSURE CONTROLLER c/w MODBUS

$680.00

Description

The Hevac DPFC  designed for fire mode operation of upto two stairwell pressure control loops & one lobby/corridor pressure relief fan systems, is hardware based on our tried & proven carpark ventilation controller HCP7.

The controller measures three 0-10v pressure sensor inputs (via external signal selectors) & produces three 0-10v outputs using P+ I plus one common relay output for optional fire mode run interlocks.

Modbus communication port allowing monitoring of all INPUT/OUTPUTS  plus allowing temporary limited fire mode run override for commissioning & testing by BMS system.

PRE-PROGRAMMED with typical settings but fully site configurable to your nominated requirements with free on going technical support & a connection drawings.

Recommended stairwell differential pressure sensors are the Siemens QBM2030 DP  sensors … see https://hevac.com.au/product/qbm2030-pressure-air-differential-sensor-0-10vdc0-100pa/



View DPFC reduced web version PDF



Additional information

Weight 500 g
Dimensions 14 × 13 × 10 mm
