HEVAC HTC Analogue Controller Range
|
(***For HTC2 & 4
|
Calibration Procedure CLICK HERE )***
note use -H sensors for non display controllers ( HTC2 & 4 series) use -D sensors for controllers with a digital display (HTC3,5 & DIGITAL) |
|---|---|
| Model Number | Description |
| HTC-BASIC-24v | 2 stage heat + 2 stage cool 24vac Powered HTC2&4 replacement controller |
| HTC-BASIC-240v | 2 stage heat + 2 stage cool 240vac Powered HTC2&4 replacement controller |
| MIMIC | Universal analog controller replacement 2H/2C MultiBrand sensor input selectable |
| HTC-2 | 1 Stage Heat & 1 Stage Cool |
| HTC-2H | 1 Stage Heat & 1 Stage Cool +Modulating 0-10VDC Heating Output |
| HTC2HC | 1 Stage Heat & 1 Stage Cool + Modulating 0-10VDC Heating & Modulating 0-10VDC Cooling Output |
| HTC-3 | 1 Stage Heat & 1 Stage Cool + Digital Display |

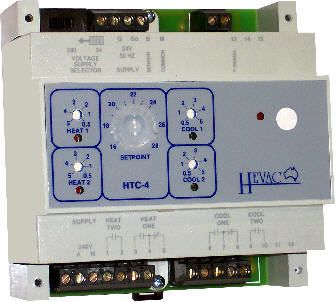

| HTC-4 | 2 Stage Heat & 2 Stage Cool |
| HTC-43S | 3 Stage Heat & 3 Stage Cool (For use with Triple Compressor AC Units Only) |
| HTC-4A | 2 Stage Heat & 2 Stage Cool + On/Off Auxiliary Heat Stage |
| HTC-4B | 2 Stage Heat & 2 Stage Cool + On/Off Economy Cycle Relay Output |
| HTC-4D | 2 Stage Heat & 2 Stage Cool + On/Off Economy Cycle Relay Output with Comparator Override Function |
| HTC-4DE | 2 Stage Heat & 2 Stage Cool + Modulating 0-10VDC Economy Cycle Output with Comparator Override Function |
| HTC-4E | 2 Stage Heat & 2 Stage Cool + Modulating 0-10VDC Economy Cycle Output |
| HTC-4H | 2 Stage Heat & 2 Stage Cool + Modulating 0-10VDC Heating Output |
| HTC-4YT | HTC-4 Complete with 0-10 V DC Modulating Compressor Output |
|

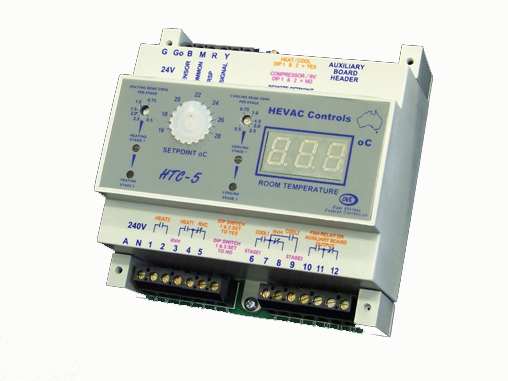

2 Stage Heat & 2 Stage Cool + Digital Display |
|
| HLD1 | Electronic single stage on/off duct mount thermostat |
| HLW1 |
Electronic single stage on/off O/A wall mount thermostat |
|
To expand HTC3 & 5 |
Outputs - use HAX53Y or R Expansion cards |
| To expand HTC2 & 4 | Outputs if no expanded version suits use HRC modules |
