LINK TO ONLINE STORE FOR COSTINGS

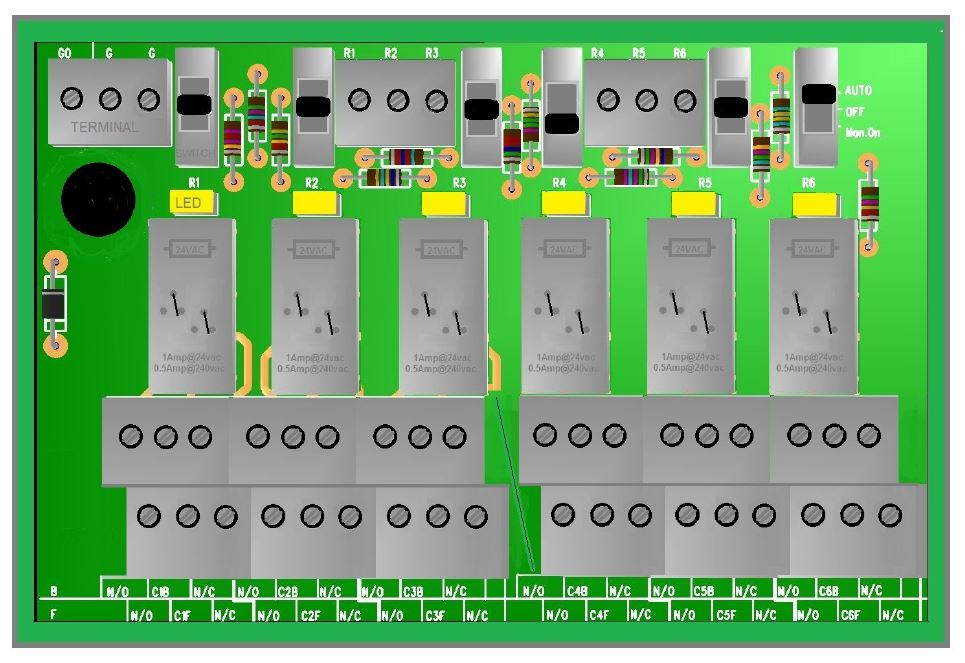

HEVAC Multistage Delay Timers HDT6

6 relay staggered start power up timer



HEVAC Lamp Test Modules

also diode Hi-Signal selector version





HEVAC Electronic Air Flow Switch HAFS

Adjustable trigger point 0.5 ~ 10 m/s





SEH62.1  SIEMENS 7 DAY TIME SWITCH

                 C/W AFTER HOURS TIMER

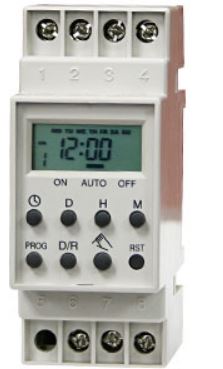

PET010 BASIC 7 DAY TIME SWITCH

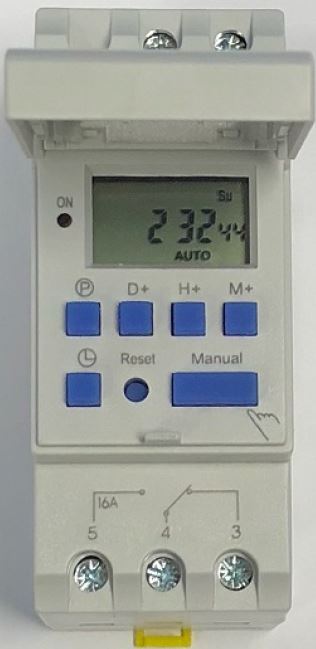

TM-615 LOW COST BASIC CHINESE 7 DAY TIME SWITCH

(SAME FEATURES AS PET010 MINUS MANUAL ON I/P)



24 Volt AC Transformers

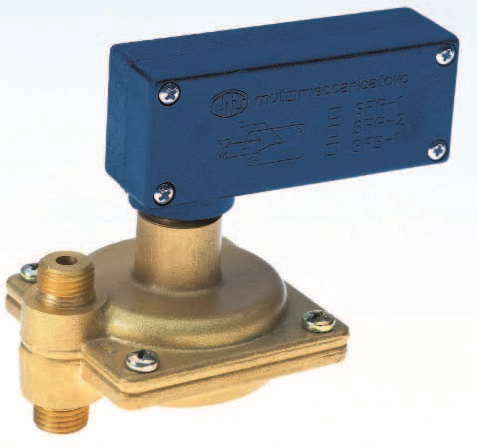

Water Flow Proving Switches







Air Differential Pressure Switches

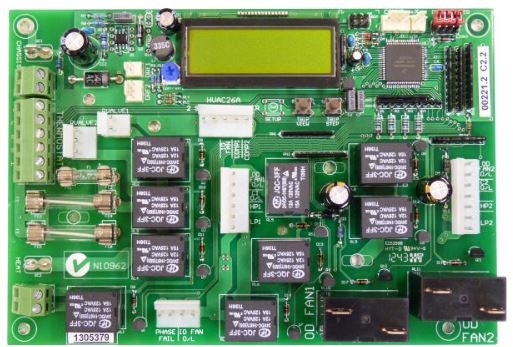

HVAC26 UNIVERSAL A/C CONTROL PCB









0-10vDC RELAY EXPANSION MODULE
SEZ-QUAD

4 x 0-10v controlled relays with independently adjustable turn-on point & switching differentials. includes signal doubler/inverter circuit.

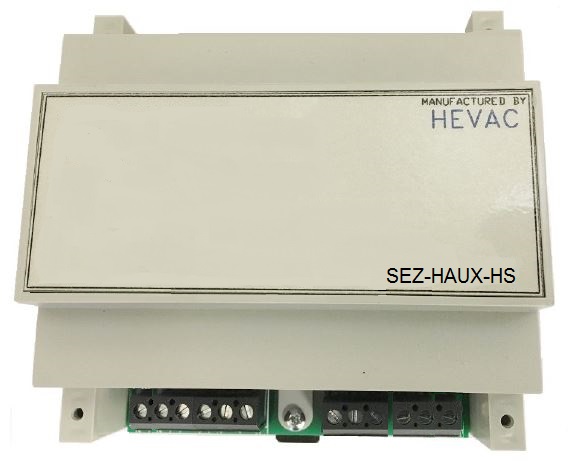

SEZ-HAUX-HS  0-10v Multi I/O Expansion Module

c/w Signal Amplifier, Signal Doubler, Signal Inverter, 2 x 0-10v controlled relays & hi-signal selector.



SEZ-HAUX-LS  0-10v Multi I/O Expansion Module

as above but low signal selector in lieu of hi-signal selector



SEZ-HAUX-AV  0-10v Multi I/O Expansion Module

as above but averaging signal selector in lieu of hi-signal selector

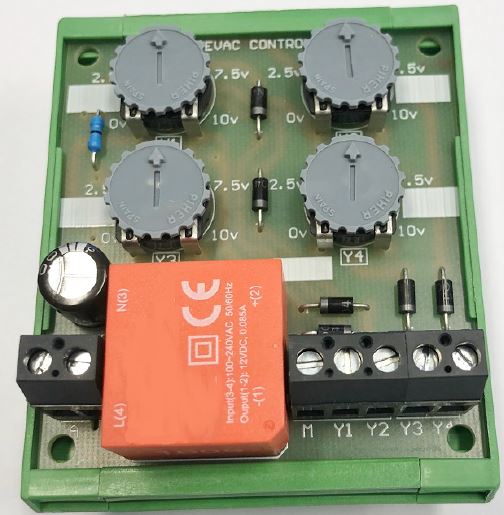

HYSA4   0-10v Signal Amplifier only (1 in 4 out)

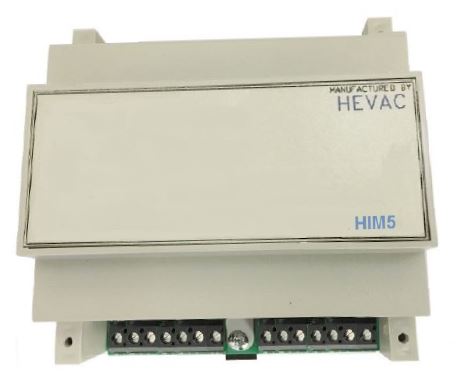

HIM5                240v/24v Relay Interface Module

HIM5-R5-20A  240v/24v Relay Interface Module







HWE3 24v Wire Saver / CT

HWE2-3 Wiring extender. converts 2 wires into virtual 3 wires

HWE3-4 Wiring extender. converts 3 wires into virtual 4 wires









RRM3  low cost & size 3 stage 0-10v controlled relay module

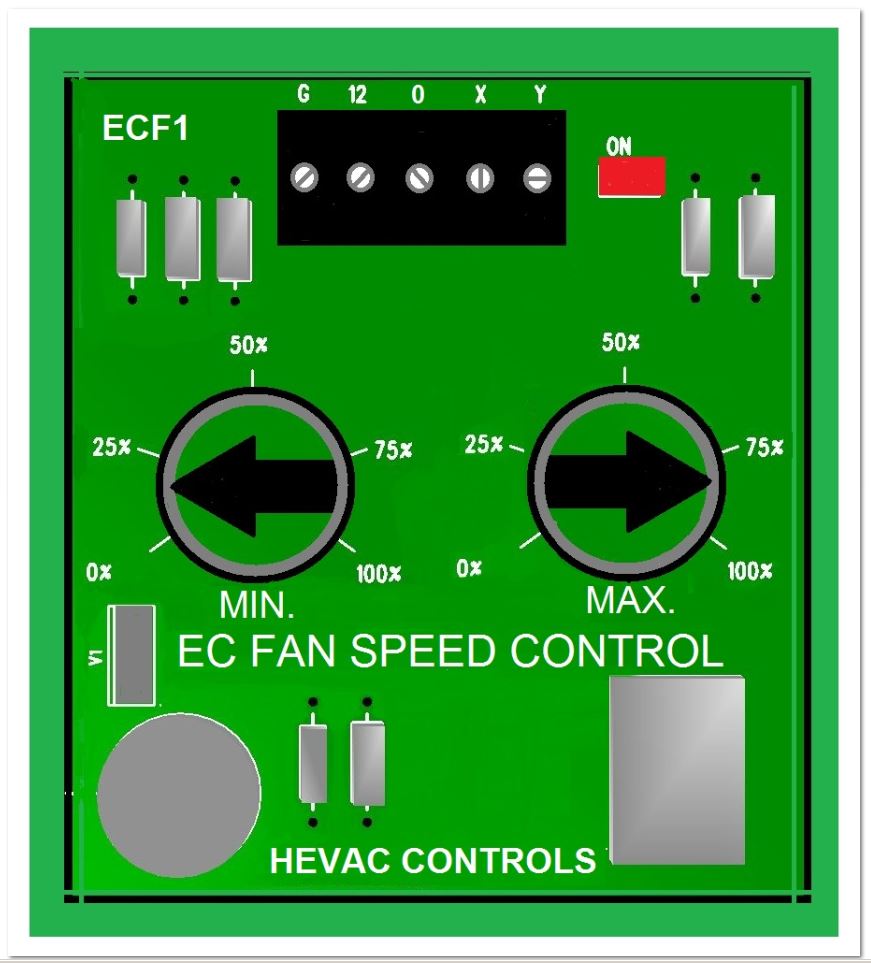

ECF1 24vAC Powered EC fan speed setting module.               Manual fixed speed setting or interlocked with an external          0-10vDC control signal to set the minimum and maximum output range includes on/off enable input.

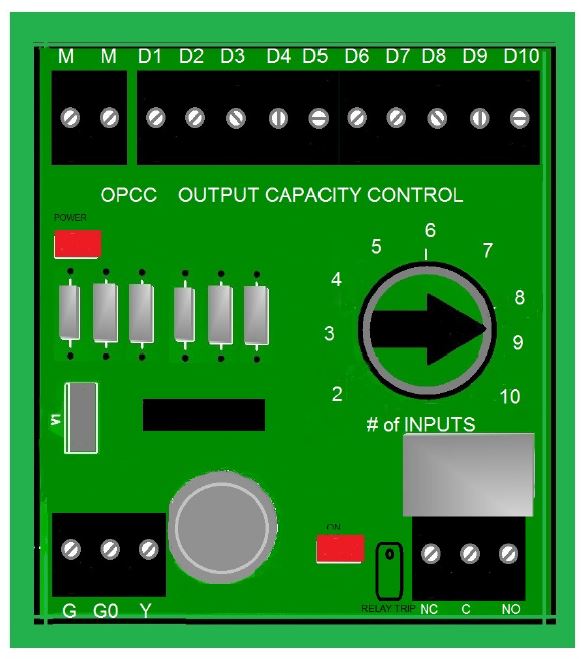

OPCC    Output capacity control module

upto 10 digital inputs to generate proportional 0-10vdc o/p

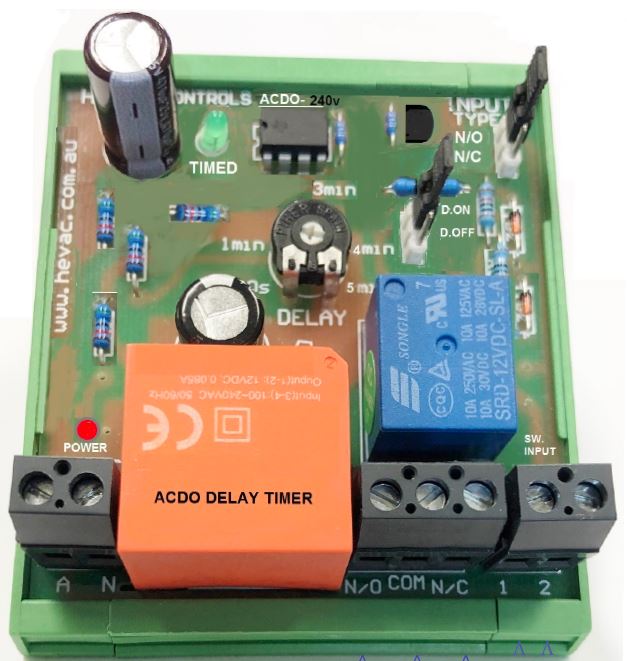

ACDO-240v     Delay ONor OFF TIMER 30s ~ 5 min.

 Typical applications include: Fan or Pump run on timer, Apartment Air conditioner off interlock with door or window switch.




HUDT-24v       Universal 16hr Timer 24v powered digital programmable multipurpose timer module, low voltage trigger I/P, capable of switching 240v 10A (res.) loads.

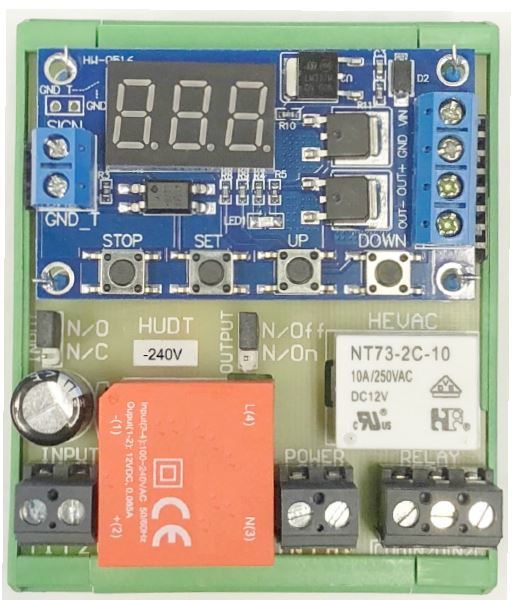

HUDT-240v     Universal 16Hr 240v powered digital programmable multipurpose timer module, low voltage trigger input, capable of switching 240v 10A (res.) loads

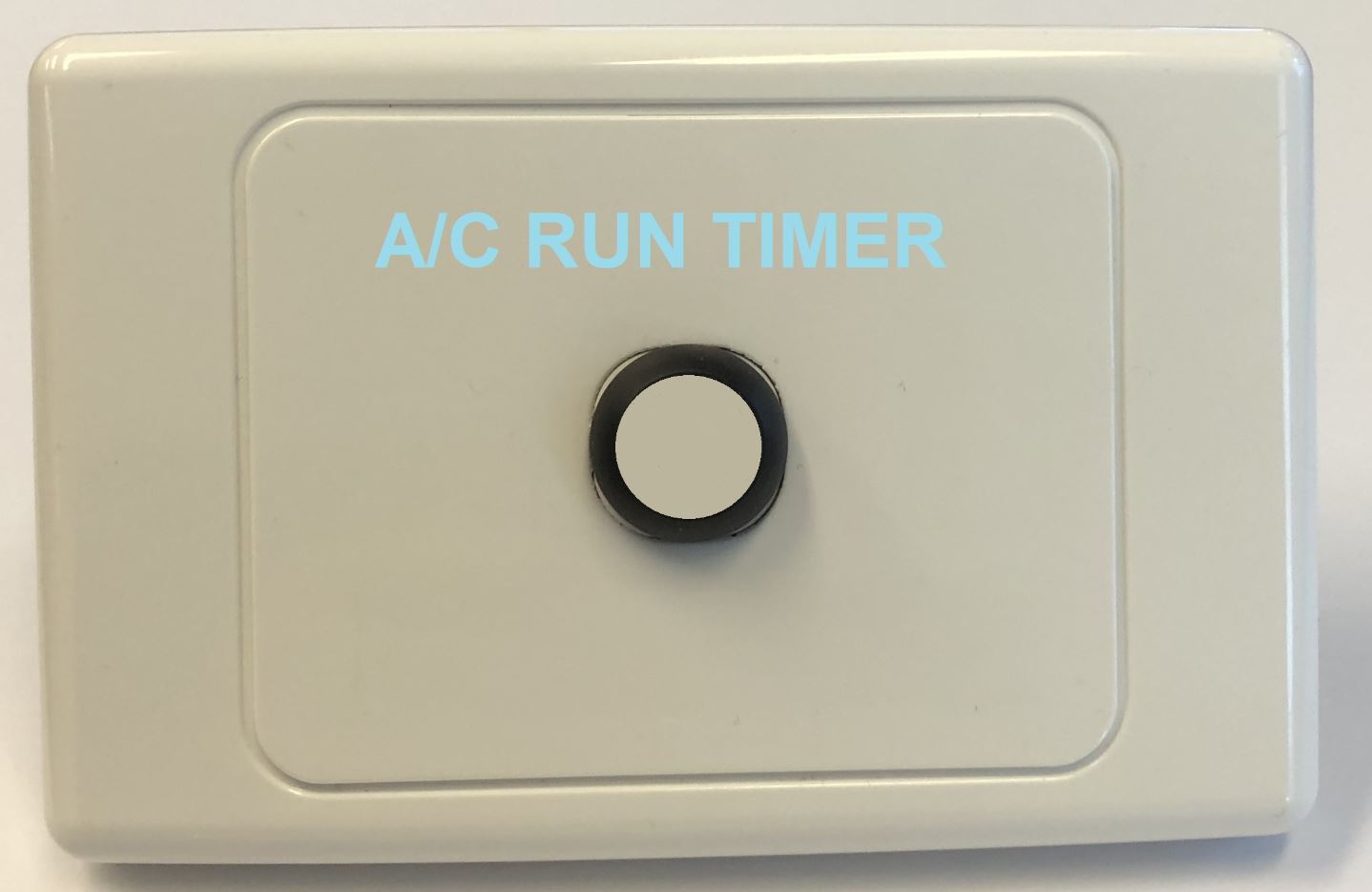

HRT-240v        2 hour RUN TIMER 240vAC powered                       Timer built on Clipsal 2000 wall plate c/w push button and led for delay on timer applications for up to 2 hours run time. Typical application is meeting room A/C wall mounted run timer.      External run & fault indication version also available (HRT-RF-240v)


HRT-24V        2 Hour RUN TIMER  24vAC powered
                    Details as above

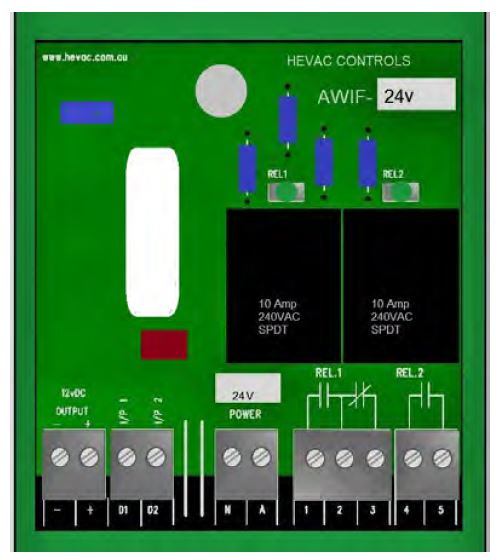

AWIF-24v       24vAC POWERED 12vDC RELAY INTERFACE

Typical application is as a low voltage interface for A/C unit Run & Fault outputs that must work with 12vDC external circuits.This model responds to a 12vdc switched active input. alternatively for model to respond to a switched 12vdc negative use NWIF model.

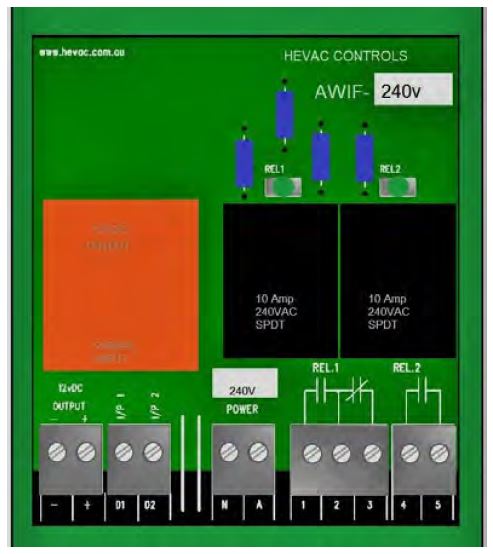

AWIF-240v      240vAC POWERED 12vDC RELAY INTERFACE

As above but 240v powered.

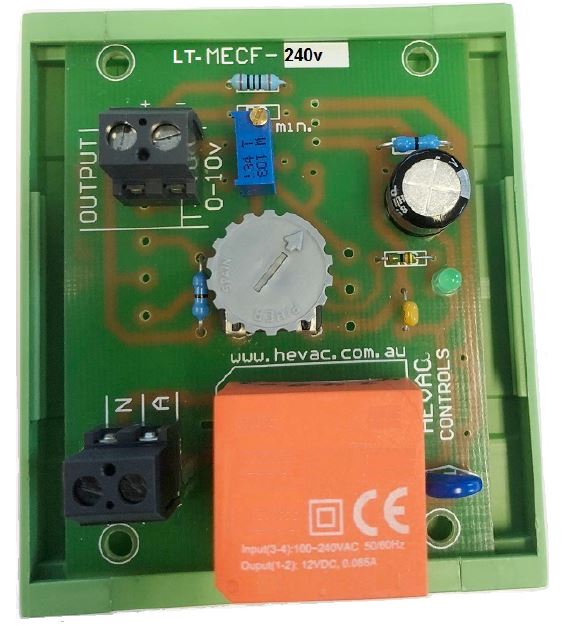

LT-MECF-240v     240v powered variable 0-10vDC output module

Used for manual EC fan speed setting or Damper motor positioner

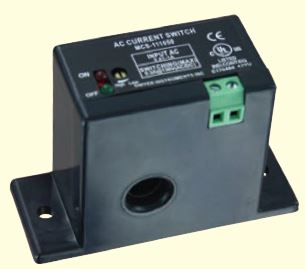

MCS Minature Current Switch >50A

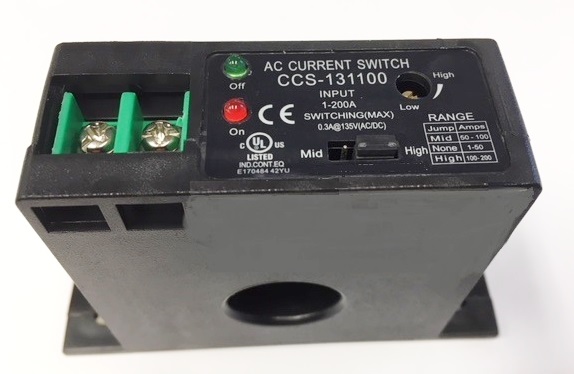

CCS Current Switch >200A

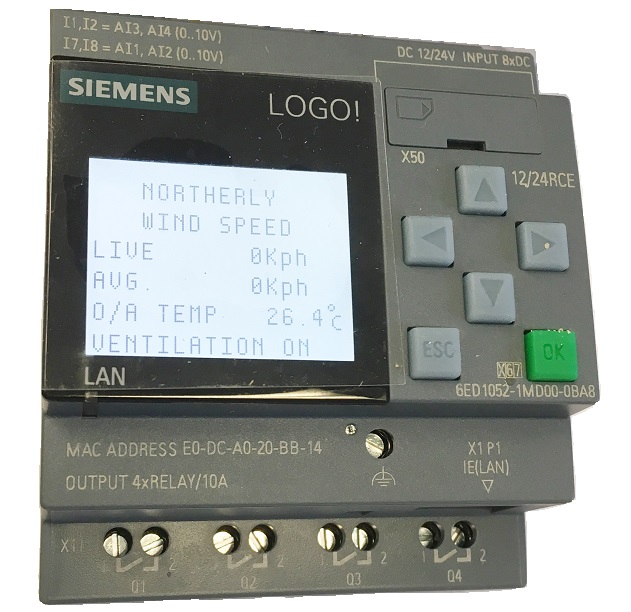

Corridor Ventilation Control

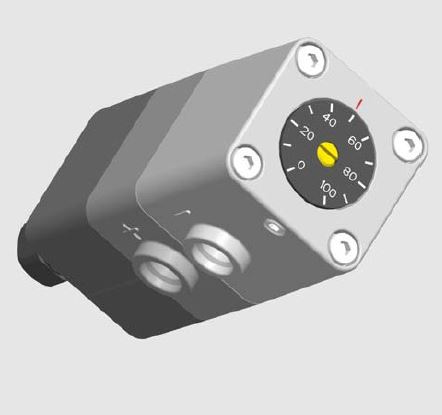

DS34 Adjustable water differential pressure switch
